Steam Boilers and Generators

Steam Boilers and Generators

ENEVA designs, manufactures, and commissions steam boilers or steam generators for the steam needs of industrial facilities, depending on capacity, pressure, fuel type, and operating conditions. All systems are handled with a process-specific engineering approach and are custom-manufactured for each project. General features are as follows:

  • Fire-tube and water-tube steam boilers (high pressure, high capacity)
  • Fire-tube or coil-type steam generators (low water volume)
  • Compatible with natural gas, liquid fuels, biogas, and hydrogen
  • CE-certified manufacturing according to EN 12952, EN 12953, and ASME standards

STEAM BOILER OR STEAM GENERATOR?

The correct system selection for steam production in industrial facilities depends not only on capacity but also on operational characteristics and process continuity.

Steam boilers are preferred for medium to high-capacity facilities with continuous steam demand, providing high-quality, dry steam. Fire-tube or water-tube designs are chosen according to the required pressure, capacity, and process needs.

Steam generators, on the other hand, are advantageous for low to medium-capacity applications that require fast start-up or where steam demand is intermittent.

Steam Boilers

  • More stable operation due to high water/steam volume
  • Production of dry steam thanks to a large evaporation surface
  • Capability to reach higher flow and pressure capacities

Steam Generators

  • Fast start–stop capability (especially for small-scale operations)
  • Safer operation with low water volume
  • Lower thermal loss in intermittent operation
  • Combustion chamber design according to fuel type and combustion characteristics
  • Maximum dry steam production with appropriate water/steam volume and evaporation surface
  • Optimal heat transfer surfaces for ideal pressure drop and flue loss
  • Flame and combustion chamber design optimized for low NOx formation

All systems are fully welded in the workshop in accordance with EN ISO 3834; delivered after completion of testing, CE, and other documentation processes.

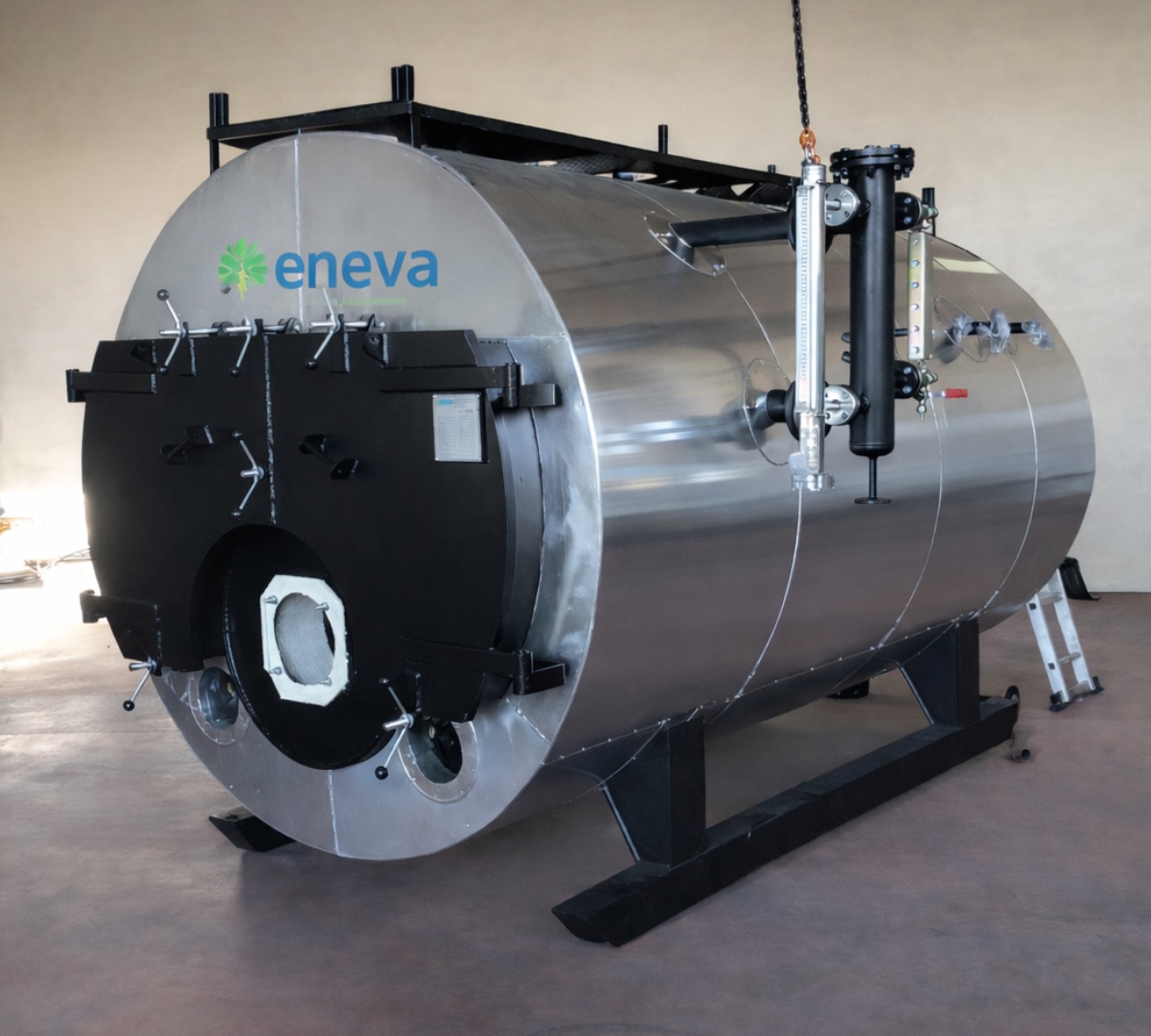

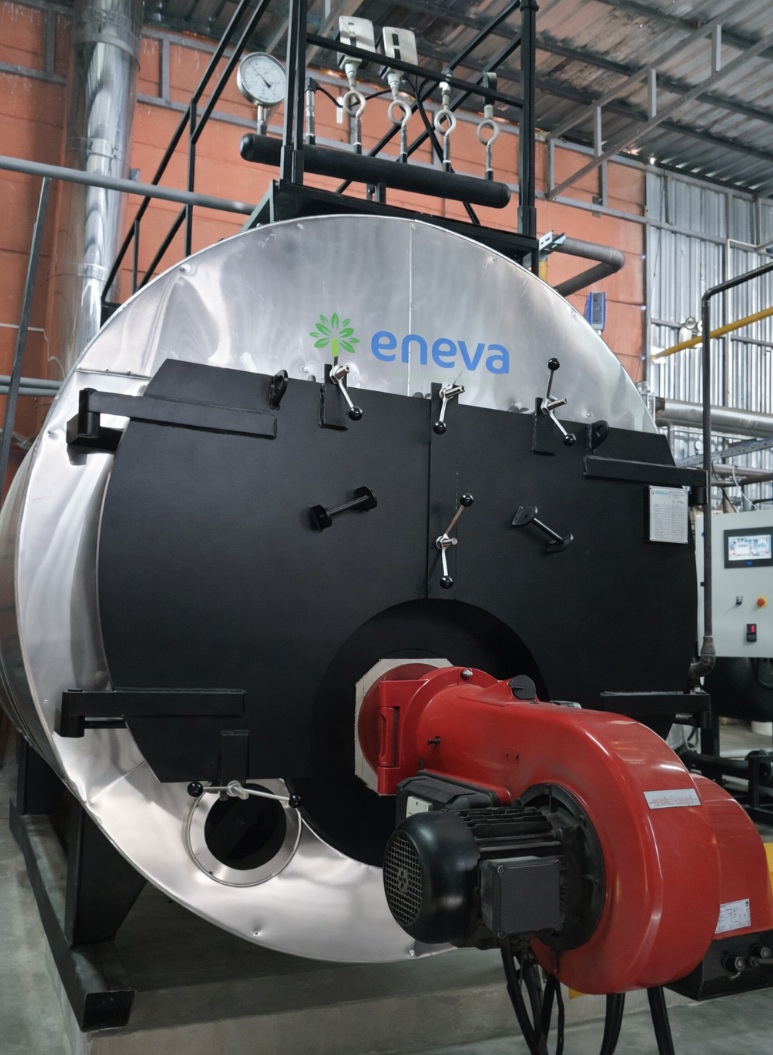

ENSTEAM Series – Steam Boilers

Three-pass, high-efficiency steam boilers for high-capacity facilities with continuous steam demand.

ENSTEAM Technical Catalog (PDF)

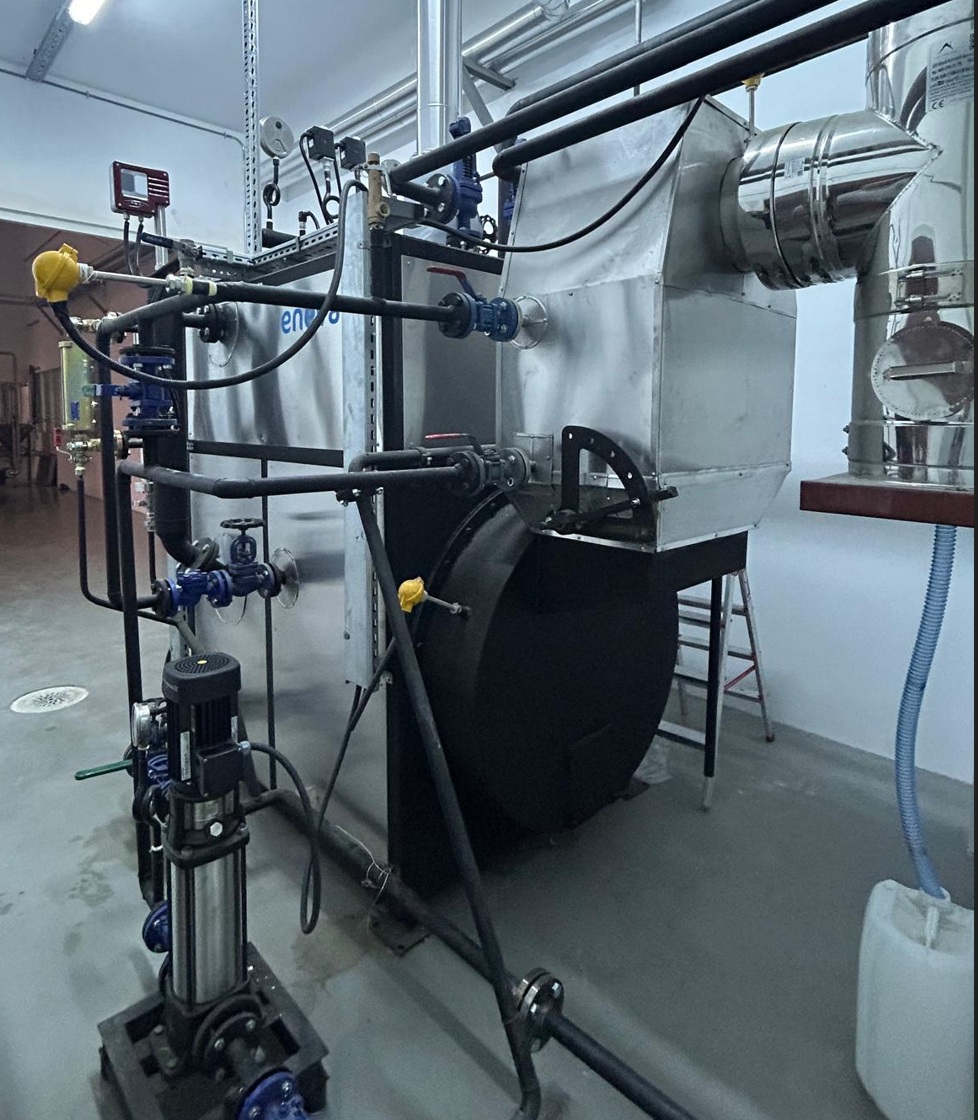

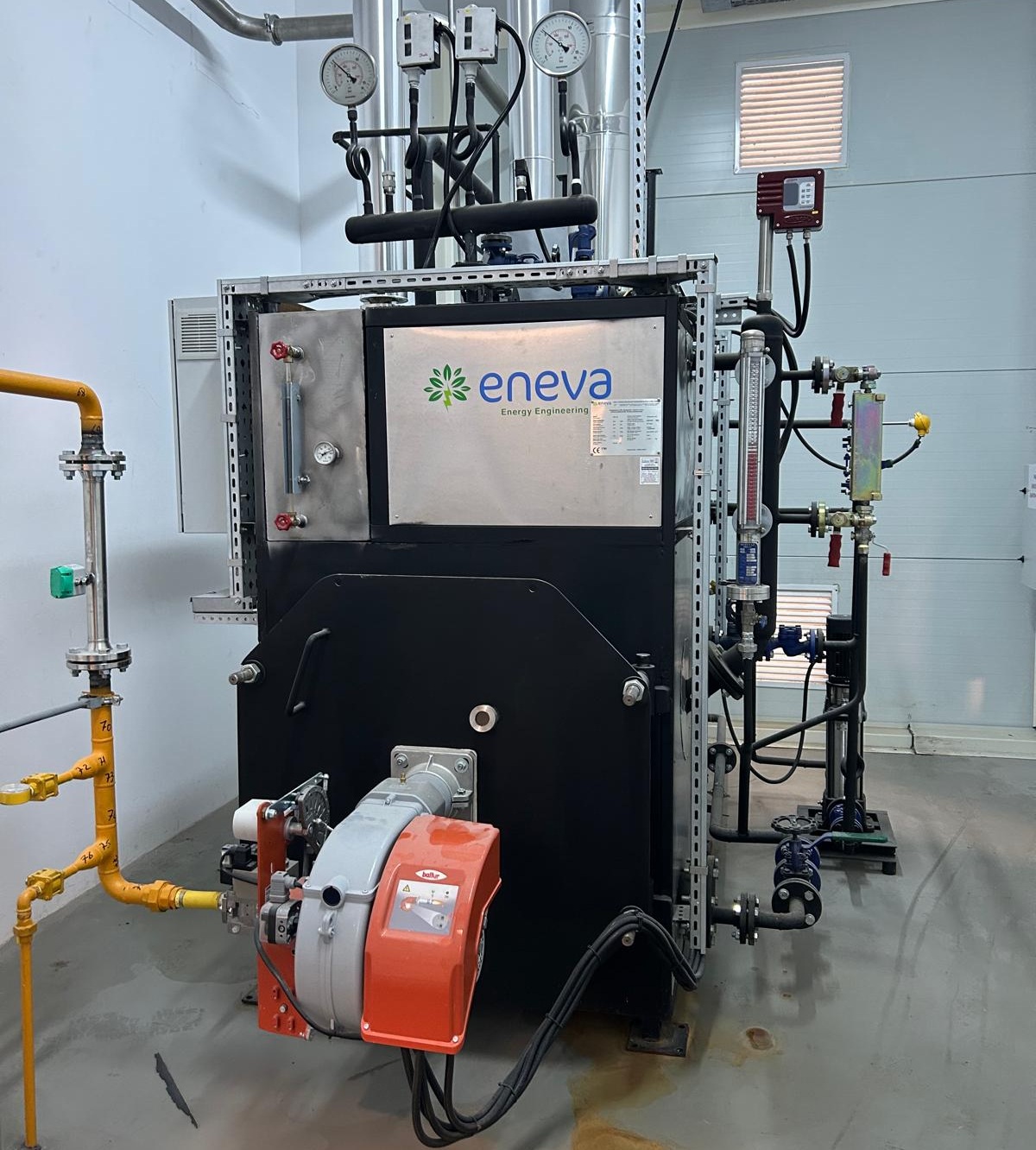

ESG Series – Steam Generators

Low-water-volume steam generators for low- to medium-capacity applications.

ESG Technical Catalog (PDF)

Let’s Discuss the Steam Solution for Your Process

Each facility has different steam requirements. Together with the ENEVA engineering team, let’s evaluate the most suitable steam boiler or steam generator solution for your process.

Submit a Technical Request
  • Manufactured in compliance with EN 12952 / EN 12953 standards
  • Option for manufacturing according to ASME standards
  • Use of certified seamless pipes in accordance with EN 10216/2
  • CE certification under 2014/68/EU PED
  • PLC-based, multi-level safety and control systems
