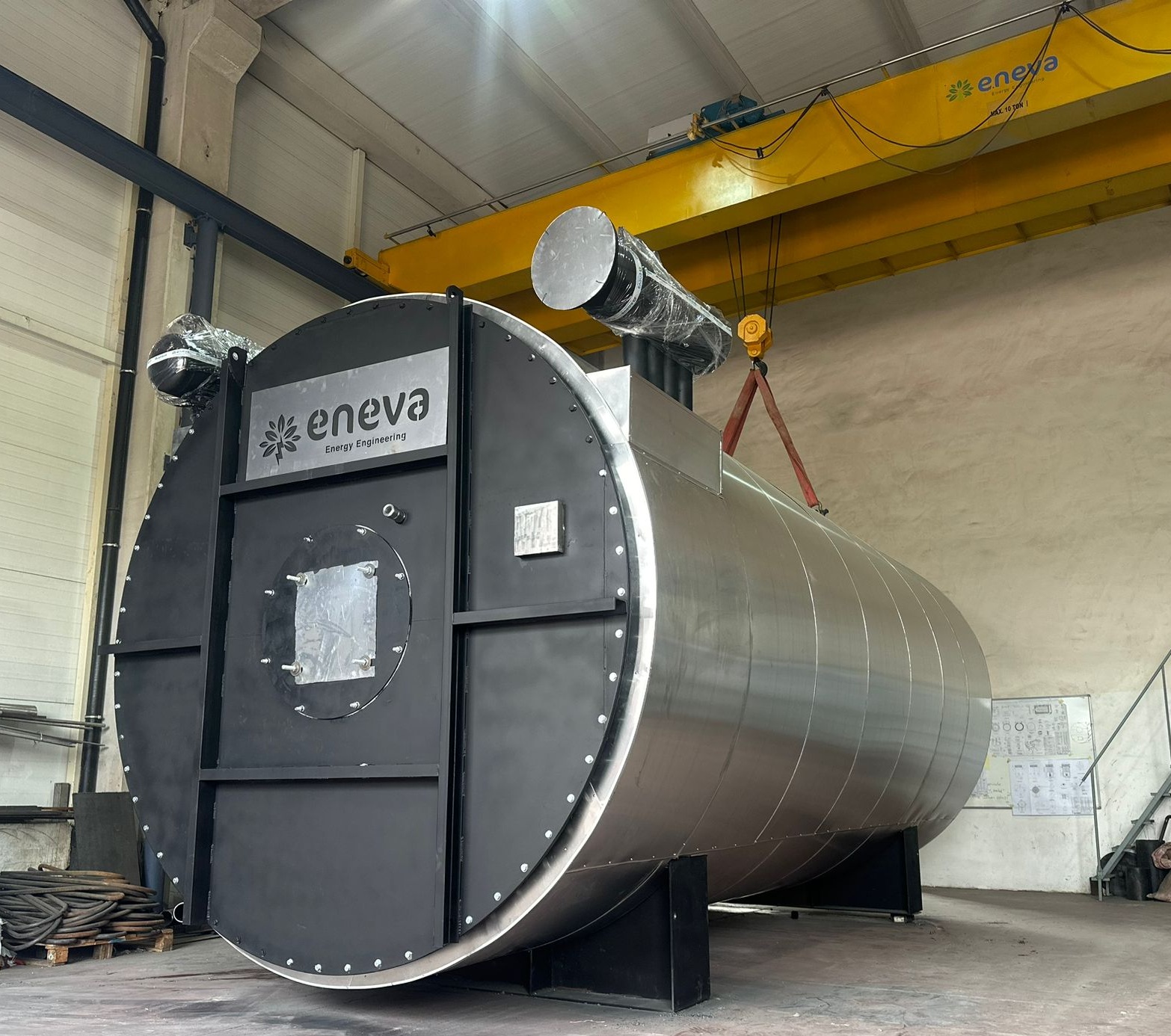

Thermal Oil Boilers
ENEVA thermal oil heaters are high-efficiency heat generation systems designed for industrial processes requiring high temperatures at low operating pressures. They provide a safe and long-lasting alternative in applications where steam is not technically or economically suitable.
- Oil outlet temperature up to 350 °C
- High temperature advantage at low pressure
- Stable, corrosion-free, and homogeneous heat transfer
- Suitable for chemical, textile, food, and process industries
- Lower maintenance requirements and long service life
In ENEVA thermal oil heaters, heat is transferred to the thermal oil circulating within a closed loop system. After releasing heat to the process, the oil returns to the heater, creating a continuous cycle.

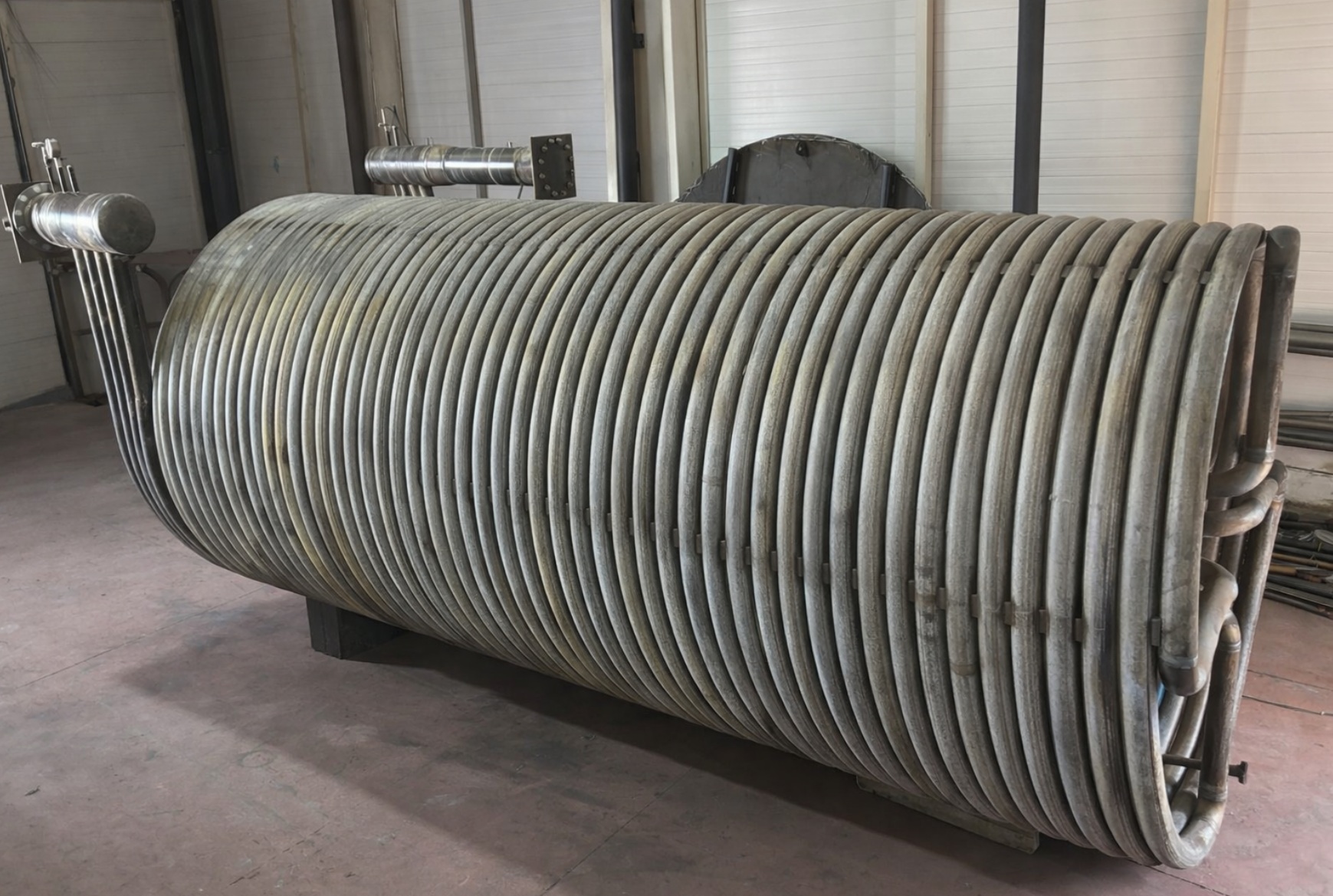

- Smooth and continuous flow with helical coil design
- Oil film temperature maintained within safe limits
- Optimized pressure drop for low pump energy consumption
- Efficient and safe operation
- Chemical and petrochemical plants
- Textile and finishing lines
- Food processes (frying, roasting, etc.)
- Packaging and plastic production
- Asphalt and bitumen plants
- Sludge drying and special process applications
Thermal Oil Heaters – Technical Catalog (PDF)
Let’s Determine the Most Suitable Thermal Oil Solution for Your Process
If you are looking for a safe, efficient, and long-lasting thermal oil system for your high-temperature requirements, let’s evaluate the most suitable solution together with the ENEVA engineering team.
Submit a Technical Request- Custom coil design based on oil type, temperature level, and flow rate
- Thermal design limiting maximum oil film temperature
- Optimized flue gas pressure drop and compact heat transfer surface
- Economizer or air preheater (recuperator) integration
- Horizontal or vertical design options
Each system is engineered with a focus on long-term operational safety and high efficiency.
- Thermal capacity: 200 kW – 10 MW
- Oil outlet temperature: Up to 350 °C
- Thermal efficiency: Up to 95% and above (with economizer/recuperator)
- Fuel options: Natural gas, liquid fuels, biogas
- High-temperature resistant carbon steel or alloy coils
- High-alumina refractory with minimal mass
- High-efficiency thermal insulation (ceramic wool / rock wool)
CONTROL & SAFETY SYSTEMS
ENEVA thermal oil systems are designed in accordance with DIN 4754 standards.
- Minimum oil flow control
- SIL2-level monitoring of flow, temperature, and pressure drop
- Additional safety scenarios for oil and film temperature
- Automatic shutdown and alarm systems
- PLC-based control and monitoring infrastructure
